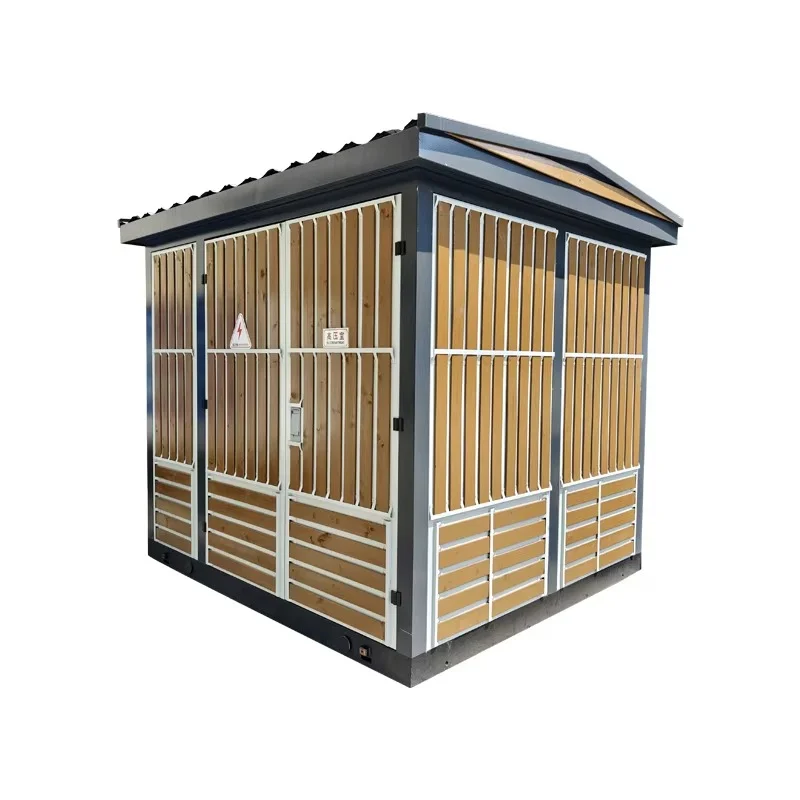

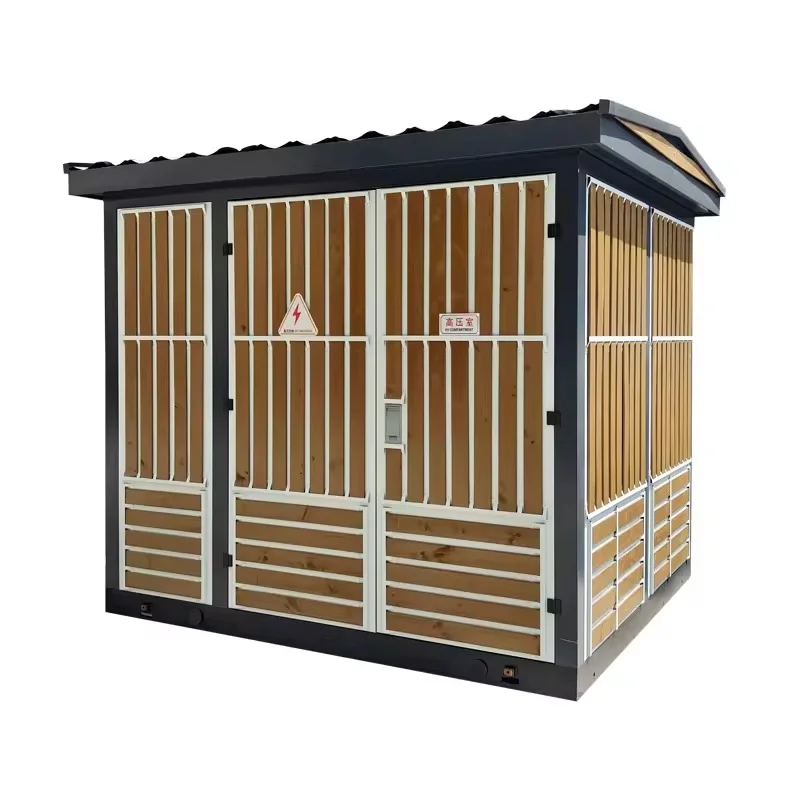

Wood Grain Compact Substation Urban Outdoor

Unlike standard steel or painted enclosures, the Wood Grain Compact Substation integrates advanced electrical engineering with a natural wooden exterior. This innovative approach allows it to perform essential low-voltage and medium-voltage distribution tasks while blending seamlessly into architectural settings. The decorative box type substation cabinet not only protects internal components but also adds a refined touch, making it ideal for luxury estates, commercial buildings, and customized electrical systems.

Built with premium insulation, precision windings, and modern safety mechanisms, this equipment ensures efficiency, durability, and compliance with international standards.

The Wood Grain Compact Substation is built for modern outdoor power distribution projects where both function and appearance matter. It provides a compact, factory-assembled solution that helps reduce installation time, improve site organization, and support stable power delivery for commercial buildings, residential developments, municipal projects, and public infrastructure.

Its enclosure is designed to offer weather resistance, structural durability, and a refined exterior style compared with conventional industrial-looking substations. For buyers serving urban construction or premium landscape projects, this product offers a practical balance between electrical safety and visual integration.

As an OEM/ODM compact substation manufacturer, we can customize enclosure dimensions, surface finish, internal configuration, rated capacity, and branding requirements according to project needs. This makes the product suitable for contractors, engineering companies, distributors, and developers seeking tailored power distribution solutions.

Main Features

• Elegant wooden trim enclosure for aesthetic integration.
• Robust protection against dust, debris, and environmental damage.
• Compact and space-saving design suitable for residential or indoor spaces.
• Versatile voltage configurations for different distribution needs.
• Durable construction ensuring long-term stability and performance.
• Customizable finish to match architectural styles.

Key Advantages

• Aesthetic appeal – blends seamlessly into homes or offices.
• Cost-effective compared to purely industrial cabinets.
• Reliable safety with grounded enclosures and insulation.
• Flexible installation options for indoor and outdoor applications.
• Energy efficiency with minimized core loss and improved cooling.

Applications

• Residential projects where visual design is as important as function.
• Luxury villas or apartments requiring discreet transformer housing.
• Commercial buildings such as hotels, offices, and shopping malls.
• Indoor utility rooms where compact and stylish equipment is preferred.
• Custom energy distribution systems needing decorative enclosures.

Installation & Maintenance

Installation Steps:

1. Choose a stable, well-ventilated area away from excess moisture.
2. Position the wooden trim box on a solid foundation or mount securely.
3. Connect primary high-voltage input and secondary low-voltage output.
4. Ensure grounding is properly installed for safety.
5. Test insulation and connections before energizing.

Maintenance Tips:

• Inspect the wooden exterior for cracks or moisture exposure.
• Clean the surface to preserve its finish and avoid dust accumulation.
• Check winding insulation and terminal connections regularly.
• Monitor load capacity to avoid overuse.

Choosing the Right Transformer Cabinet

When selecting wooden trim box transformer equipment, consider:

• Load rating (kVA) – match your power needs.
• Enclosure design – decorative vs. industrial requirements.
• Voltage specifications – ensure compatibility with your system.
• Placement environment – indoor or outdoor installation.
• Aesthetic requirements – wooden finish that suits your property.
