Product Overview

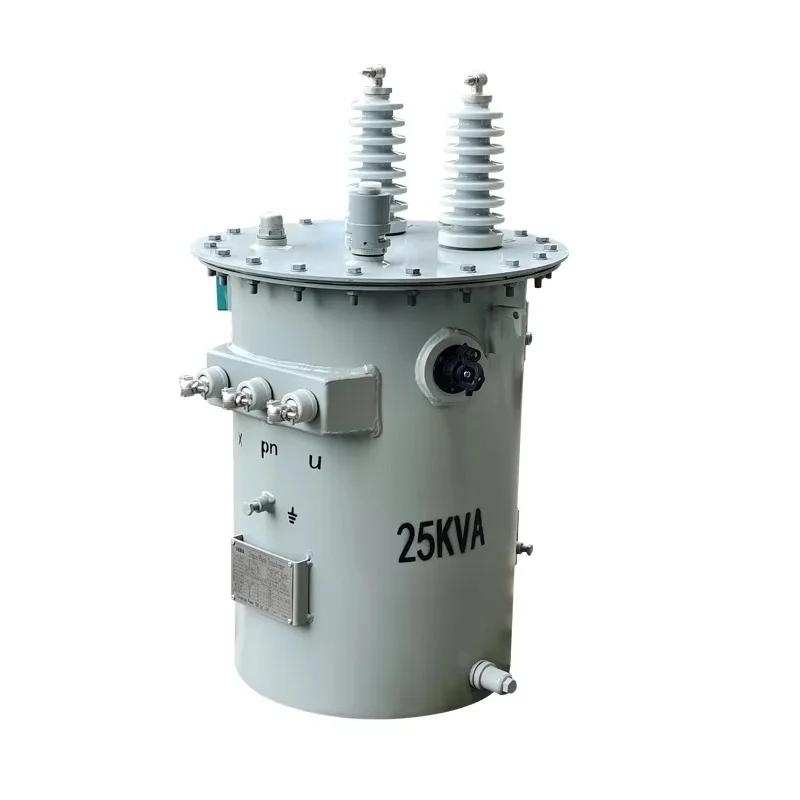

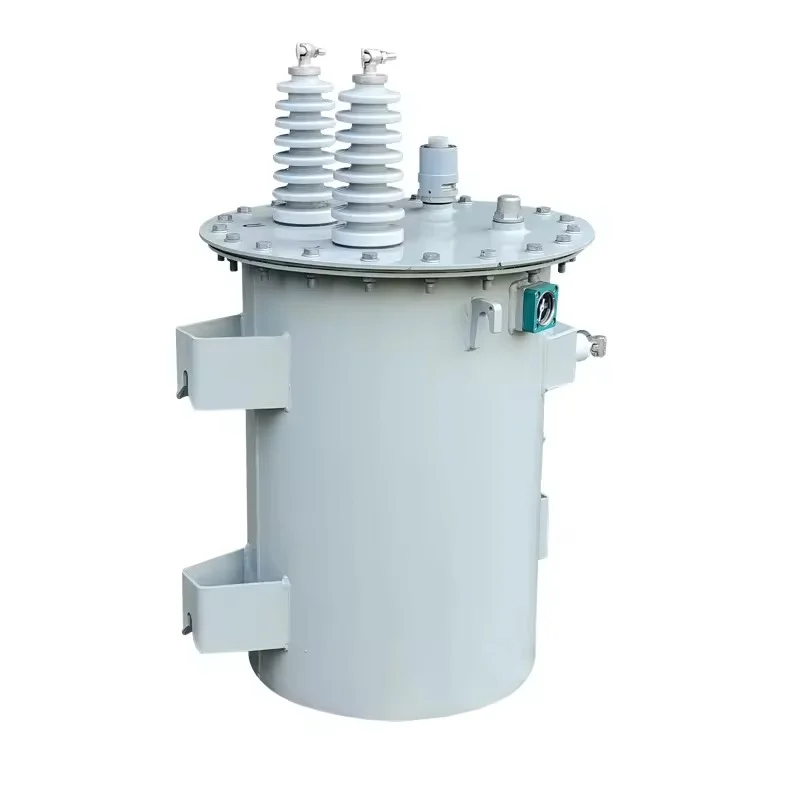

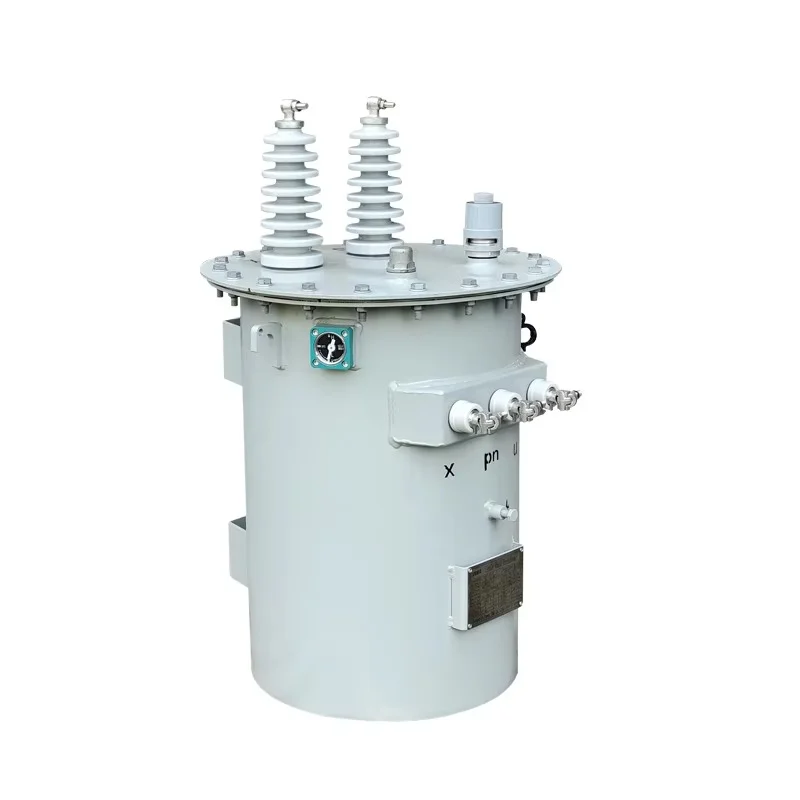

This page covers single-phase distribution transformer equipment for projects that require a single-phase voltage-conversion solution. The available product information identifies pole-mounted and pad-mounted formats and lists oil-immersed or dry-type construction as configuration options. No single model rating is confirmed on this page, so voltage, capacity, insulation, cooling, and enclosure details must be selected for the project.
Available Configuration Directions
- Phase arrangement: Single-phase.
- Function: Voltage step-down for single-phase distribution.
- Installation formats: Pole-mounted or pad-mounted.
- Insulation and cooling options: Oil-immersed or dry-type.
- Electrical ratings: Project-specific; confirm before quotation.
Data Clarification
The previous body included an SH15-M table with a Dyn11 connection group. Dyn11 is not treated here as verified single-phase product data, so that table has been removed from this page. Request the correct single-phase datasheet and outline drawing for the required configuration.
Selection Guidance
Provide the primary and secondary voltages, required kVA capacity, frequency, installation format, insulation or cooling preference, enclosure requirement, ambient conditions, applicable standard, available mounting space, and protection arrangement. Compatibility must be checked against the complete distribution-system design.
Frequently Asked Questions
Is a specific capacity range confirmed on this page?
No. Capacity must be confirmed from the required load and the selected single-phase model datasheet.
Can the transformer be pole-mounted or pad-mounted?
Both formats are listed as configuration directions. Confirm the required construction and dimensions before ordering.
Are oil-immersed and dry-type versions available?
Both are referenced in the current product information. The selected design depends on installation and project requirements.
Why was the previous Dyn11 table removed?
The table identified Dyn11 and SH15-M data, which cannot be treated as verified single-phase model data.
What should be provided for a quotation?
Provide phase, primary and secondary voltages, frequency, capacity, installation type, insulation or cooling preference, enclosure, applicable standard, quantity, and destination.
Request a Quote
Send the single-phase system and installation requirements for configuration review and quotation.
